I am half-way through changing the inner and outer CV boots on my 2.7 Auto Disco 3 - in the CV kit I have two boots, 4 metal band clips but also two round metal clips made of small gauge wire.
Can anyone show/tell me where those round wire clips are supposed to go - I didn't find anything the same on the driveshaft when I removed the old boots.
Also I have seen some mention of different grease for the inner and outer boot but the kit I have only seems to have one type of grease (I think!) - it's a Britpart kit if that helps - the boots seem of decent quality.
Thanks in advance
Tim
EDIT - Sorry just realised I put this in the D4 section..
18th Mar 2025 3:58 pm
Sundayjumper
Member Since: 23 Sep 2024
Location: Berkshire
Posts: 164

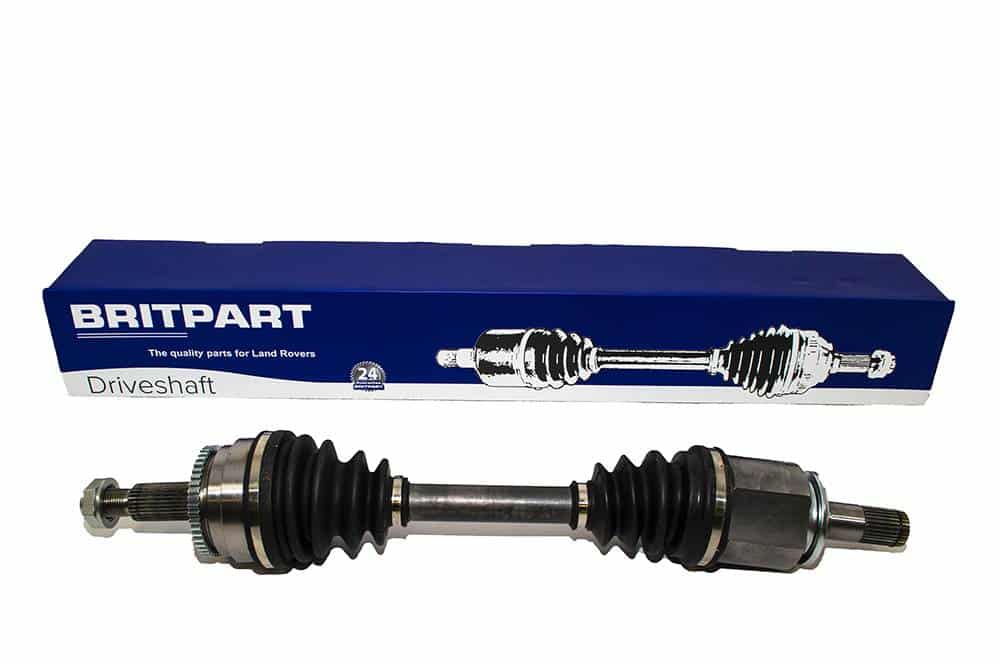

They go into the groove near the end of the splined part of the driveshaft, where it plugs into the diff. Right hand side in this pic:
Click image to enlarge
18th Mar 2025 4:40 pm
Acecross
Member Since: 02 Feb 2025
Location: UK
Posts: 14
Ok that makes sense - my inner boot had split in half so when i pulled the drive-shaft it came away from the inner shaft at the boot so I have just replaced the boot and regreased and did not pull the shaft out of the diff - so I guess thats why i didnt see the clips.
